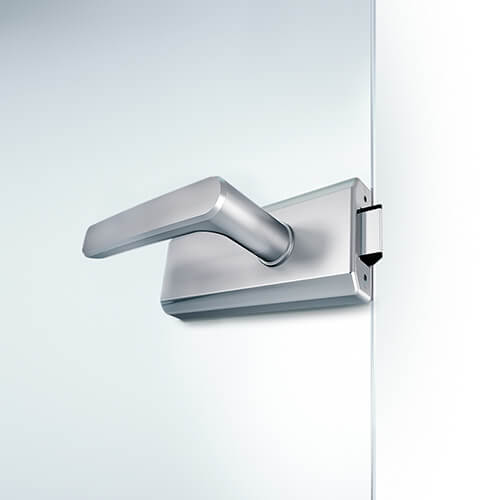

Distinctive with a dynamic line

The fitting STUDIO Gala 2.0 emphasizes striking features with its dynamic line as well as the high standard of an interior design with glass.



Advantages

  • Whisper-comfort noise reduction for quiet door closing
  • Chooseable handle position
  • Spring-supported clamp nut for exact handle positioning
  • Existing frames can be used
  • Long lifetime - 200,000 motion cycles of the latch function and the bolt were tested
  • According to EN 12209
Specialist partner search

STUDIO Gala 2.0 - At a glance

Glass Type

TSG
Glass Thickness

8 mm (in frames with 24 mm rebate depth)

10 mm (in frames with 26 mm rebate depth; with special latch on request also in frames with 24 mm rebate depth)
Max Leaf Weight

45 to 60 kg (depending on the combination of STUDIO hinges and frame parts used) /

upto 80 kg (depending on the combination of OFFICE hinges and frame parts used)
Lock Design

non-locking latch, profile cylinder, warded lock
Applications

1 panel doors
Material

Aluminium
Surfaces

Anodized and RAL-Colors (coated)

Downloads

pdf | 16 MB
Technical Brochure Glass Door Fittings 2023
pdf | 3 MB
Mounting instruction STUDIO Gala
pdf | 506 KB
Mounting instruction STUDIO hinges for special rebate depths

Accessories

Large selection of lever handles for glass doors, which are technically mature solutions for high design requirements in the building.


The product family at a glance

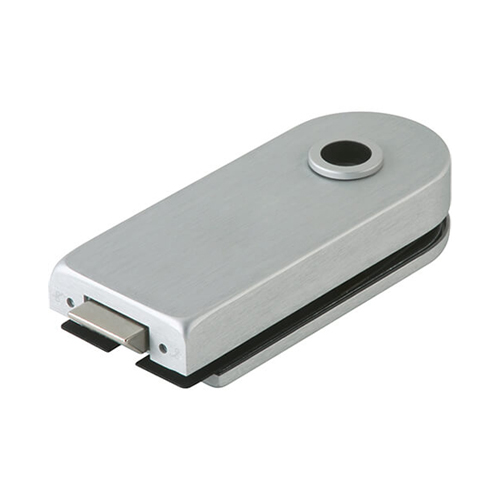

Glass Thickness Lock Design Applications Material
8 mm (in frames with 24 mm rebate depth) 10 mm (in frames with 26 mm rebate depth; with special latch on request also in frames with 24 mm rebate depth) non-locking latch, profile cylinder, toilet lock 1 or 2 panels, sidelight Aluminium

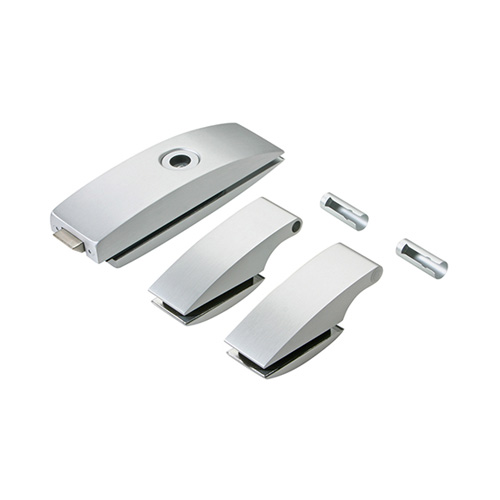

Glass Thickness Lock Design Applications Material
8 mm (in frames with 24 mm rebate depth) 10 mm (in frames with 26 mm rebate depth; with special latch on request also in frames with 24 mm rebate depth) non-locking latch, profile cylinder, warded lock, toilet lock, round cylinder 1 or 2 panels, sidelight Aluminium, Brass

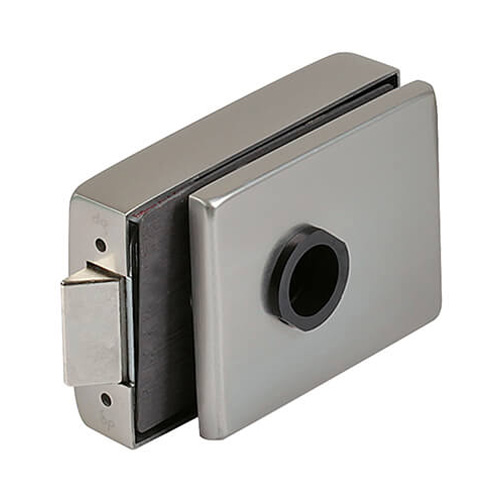

Glass Thickness Lock Design Applications Material
8 mm (in frames with 24 mm rebate depth) 10 mm (in frames with 26 mm rebate depth; with special latch on request also in frames with 24 mm rebate depth) non-locking latch, profile cylinder, warded lock, toilet lock, round cylinder 1 or 2 panels, sidelight Aluminium

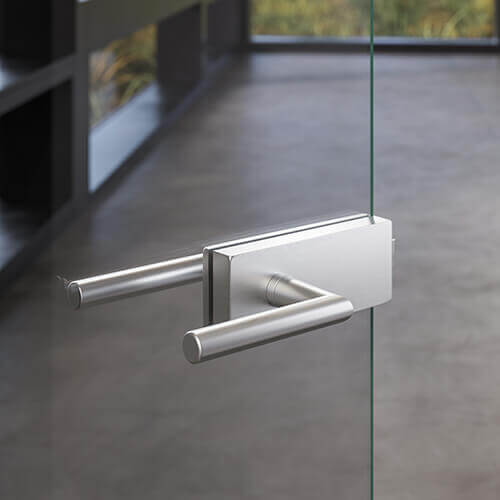

Glass Thickness Lock Design Applications Material
8 mm (in frames with 24 mm rebate depth) 10 mm (in frames with 26 mm rebate depth; with special latch on request also in frames with 24 mm rebate depth) non-locking latch, profile cylinder, warded lock, toilet lock, round cylinder 1 or 2 panels, sidelight Aluminium
Glass Thickness Lock Design Applications Material
8, 10 mm non-locking latch 1 or 2 panels, sidelight Aluminium
