Sliding glass walls

HSW EASY Safe

<p>glass sliding wall, hsw, easy safe, 40102, 40101, 40103, 40107, 40106, 40114, 40113, 40115, 40105, 40104, 40118, 40117, 40061, 40062, 40065, 40063, 40064, 40066, 40067</p>
arrow_back_ios
arrow_forward_ios

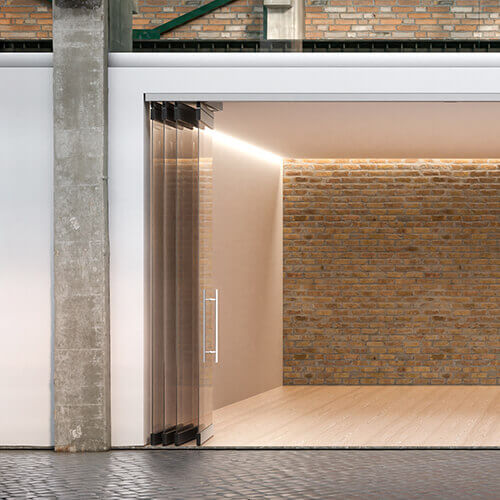

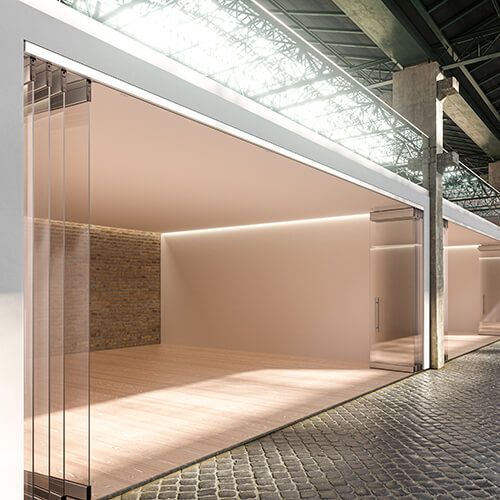

Single elements with free lateral glass edges

High transparency and safety in use. Whether in straight, angled or curved design - HSW EASY Safe adapts to individual requirements and is suitable for modernisations as well as new buildings.



Advantages

  • Free lateral glass edges for high transparency
  • User friendly operation of the single panels for flexible use of space

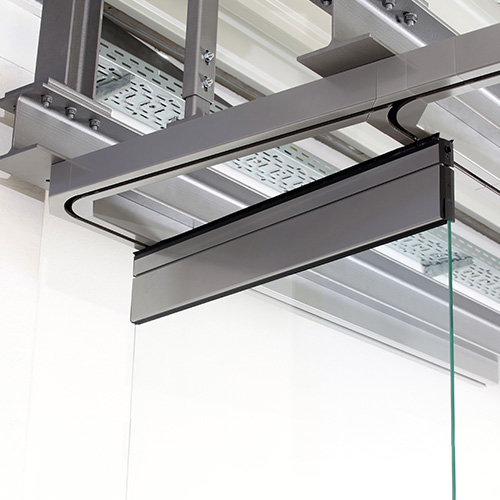

  • Secure hold of laminated safety glass through adhesive bonding
  • Visible status indicator by clear color system for upper locking systems
Specialist partner search

HSW EASY Safe - At a glance

arrow_back_ios
arrow_forward_ios
Glass Type

TSG, LSG made of TSG, STG (semi-tempered glass)

Glass Thickness

10; 10,8; 12; 12.8; 13.5; 15; 17; 19 mm

Max Leaf Height

3600 mm - 4000 mm

Max Leaf Width

1100 mm - 1250 mm

Max Leaf Weight

120 kg - 150 kg

System Course

Straight, angled, segmented, curved

Downloads

pdf | 29 MB
Technical Brochure Glass Sliding Walls 2023
pdf | 2 MB
Enquiry / Order Horizontal Sliding Walls
pdf | 468 KB
Brochure HSW Flex Therm
pdf | 4 MB
Installation instructions
pdf | 548 KB
Operating manual
pdf | 725 KB
HSW EASY Safe - Multilock
pdf | 269 KB
Eccentric bushing

Accessories

The extensive lock programme for all-glass systems offers the right locks for different requirements.


Large selection of lever handles for glass doors, which are technically mature solutions for high design requirements in the building.
