Sliding door fittings

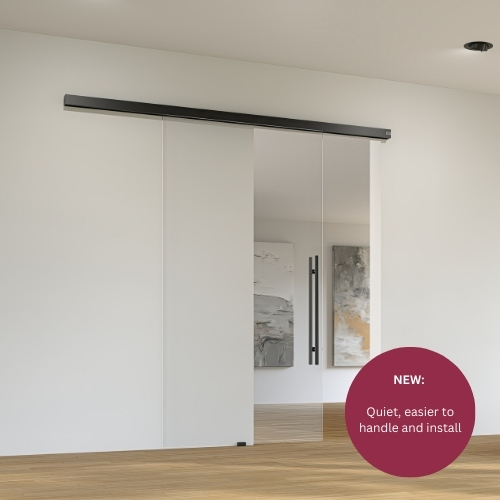

MUTO Comfort M 60 2.0

<p>muto, sliding door fitting, Fittings for sliding doors, fittings, sliding doors, 36670, 36676, 36671, 36677, 36674, 36680, 36941, 36684, 36687, 36672, 36678, 36673, 36679, 36675, 36681, 36682, 36683, 36691, 36685, 36688, 36686, 36696, 36693, 36271, 36274, 36694, 36695, 36802, 36803, 36692, 36273, 36810, 36811, 36812</p>
arrow_back_ios
arrow_forward_ios

Makes the little ones stand out.

Small doors with great design freedom - already from 600 mm leaf width. Perfect for use where space is limited. It goes without saying that the MUTO Comfort M 60 sliding door fitting combines chic design with a high level of user comfort.

With the new version of the MUTO Comfort M 60 2.0, we are offering an upgrade to the previous model. Our innovation in the area of sliding doors sets new standards in terms of noise reduction.



Advantages

  • Installation and adjustment on sight
  • Installed panels effortlessly adjustable in height between + 4 mm / - 2 mm
  • Safe anti-jump device
  • DORMOTION retrofittable without effort - without glass processing, at the already installed panel
  • Connection of a fixed side panel possible with fixing at ceiling
  • Special anodized finishes and powder coatings



The Comfort Upgrade

  • Smooth and quiet handling thanks to optimised rollers
  • Low push forces for child's play operation
  • New, screw-in retaining inserts for the cover plate make installation quicker and easier



Specialist partner search

MUTO Comfort M 60 2.0 - At a glance

Glass Type TSG, LSG (2 x TSG)
Glass Thickness 8 - 12 mm
Max Leaf Weight 60 kg
Applications single panel door, glass side-light
Material Aluminium
Surfaces Anodized and RAL-colors (powder coated)
Mounting Type

Wall and ceiling

Your advantages
  • DORMOTION (optionally retrofittable)
  • Tested acc. DIN EN 1527:2020-04
  • Height readjustable without dismantling +4/–2 mm

Downloads

pdf | 2 MB
Brochure sliding door fitting MUTO M 60 2.0
pdf | 46 MB
Technical Brochure Sliding Door Fittings 2024
pdf | 279 KB
MUTO Comfort M 60 2.0 Ceiling mounting with side panel
pdf | 255 KB
MUTO Comfort M 60 2.0 Overview wall- and ceiling mounting
pdf | 258 KB
MUTO Comfort M 60 2.0 Timber door connection wall- and ceiling mounting
pdf | 247 KB
MUTO Comfort M 60 2.0 Wall- and ceiling mounting
pdf | 10 MB
Installation instructions MUTO Comfort M60 2.0
pdf | 2 MB
Installation instructions MUTO Comfort M60 LSG 2.0
pdf | 100 KB
Additional sheet MUTO Comfort / Premium - Recessed floor guide
pdf | 946 KB
Mounting instruction MUTO COMFORT / PREMIUM - Floor stop
pdf | 11 MB
Mounting instruction MUTO COMFORT M60
pdf | 3 MB
Mounting instruction MUTO Comfort M 60 - VSG-Set
pdf | 278 KB
Maintenance manual Manual sliding doors
pdf | 199 KB
Installation instructions MUTO Comfort / Premium - Sealing system

Accessories

Applicable in public buildings and privat homes, for sliding, single and double action doors, matching the appearance of the entire building.


The recessed pull grips and door knobs are suitable for light sliding doors. Flat designs allow doors to be pushed completely out of the passageway.


The product family at a glance

Glass Type Glass Thickness (min./max.) Max Door Leaf Weight
TSG, LSG (2 x TSG) 8–13.5 mm 80 kg
Glass Type Glass Thickness (min./max.) Max Door Leaf Weight
TSG, LSG (2 x TSG) 8–13.5 mm 80 kg/150 kg
Glass Type Glass Thickness (min./max.) Max Door Leaf Weight
TSG, LSG (2 x TSG) 8–13.5 mm 120 kg
Glass Type Glass Thickness (min./max.) Max Door Leaf Weight
TSG, LSG (2 x TSG) 8–13.5 mm 80 kg (per panel)
