Advanced function – for a barrier-free shower experience

TANORA S2 shower fittings are used particularly in floor-level glass showers. This is because they have a lift-and-lower function that lifts the glass doors 5 mm when activated. This protects the lower sealing profiles from wear. Continuous sealing profiles on all glass edges guarantee an optimal seal.



Your benefits

  • 90° opening on one side
  • Lift-and-lower function +/- 5 mm
  • Latching function at 90°
  • Self-closing from 70°
  • Cover caps for invisible screws
  • Wall mounting with long holes
  • Continuous sealing profiles on all glass edges
  • Suitable for floor-level glass showers
  • In-house durability test according to DIN EN 14428:2019-07
  • Fixed part fittings in matching design
Specialist partner search

TANORA S2 - At a glance

arrow_back_ios
arrow_forward_ios
Glass Type

ESG

Glass Thickness

8 mm

Max load capacity
(2 ribbons)

40 kg

Applications

Single-action door

(with lift-lower-function)

Basic material

Brass

Surfaces

Polished chrome, Sim. satin stainless steel matte

Black matte (RAL 9005 powder coated)

Special color (RAL powder coated)

Downloads

pdf | 13 MB
Planning manual Glass showers 2025
pdf | 392 KB
Mounting instruction TANORA S2 Hinge glass-wall
pdf | 515 KB

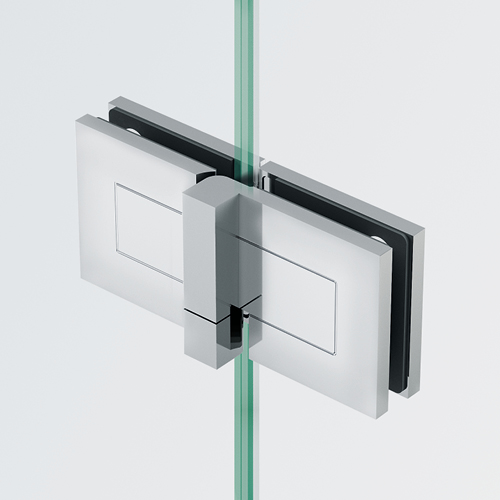

Mounting instruction TANORA S2 Hinge glass-glass 180°

The product assortment at a glance

Applications

Single-action door

(with lift-lower-function)

Glass Type/Glass Thickness
ESG 8 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
Max load capacity (2 ribbons)
40 kg
Wall mount
With elongated holes and fixing hole
Miscellaneous
Cover caps for invisible screws
Applications

Single-action door

(with lift-lower-function)

Glass Type/Glass Thickness
ESG 8 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
40 kg
Wall mount
-
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
With elongated holes
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
-
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
With elongated holes
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
-
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
With elongated holes
Miscellaneous
Cover caps for invisible screws
Applications

Fixed panel

Glass Type/Glass Thickness
ESG 8/10/12 mm
Glass fixing
With clamping plate
Basic material
Brass
Adjustments
-
Max load capacity (2 ribbons)
Unlimited
Wall mount
-
Miscellaneous
Cover caps for invisible screws

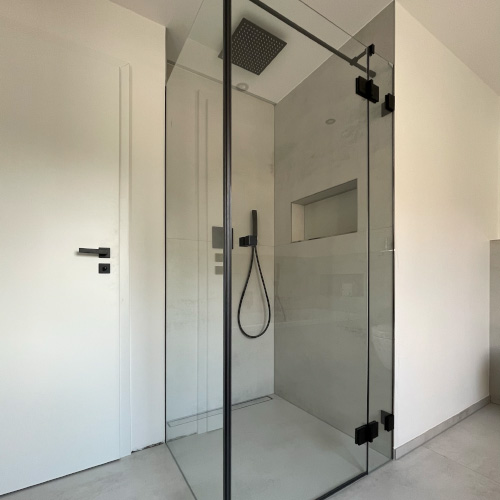

Possible installation situations
